AiM Sports - MXP 6" TFT Dash Logger SKU:XA5MXPSTRI010

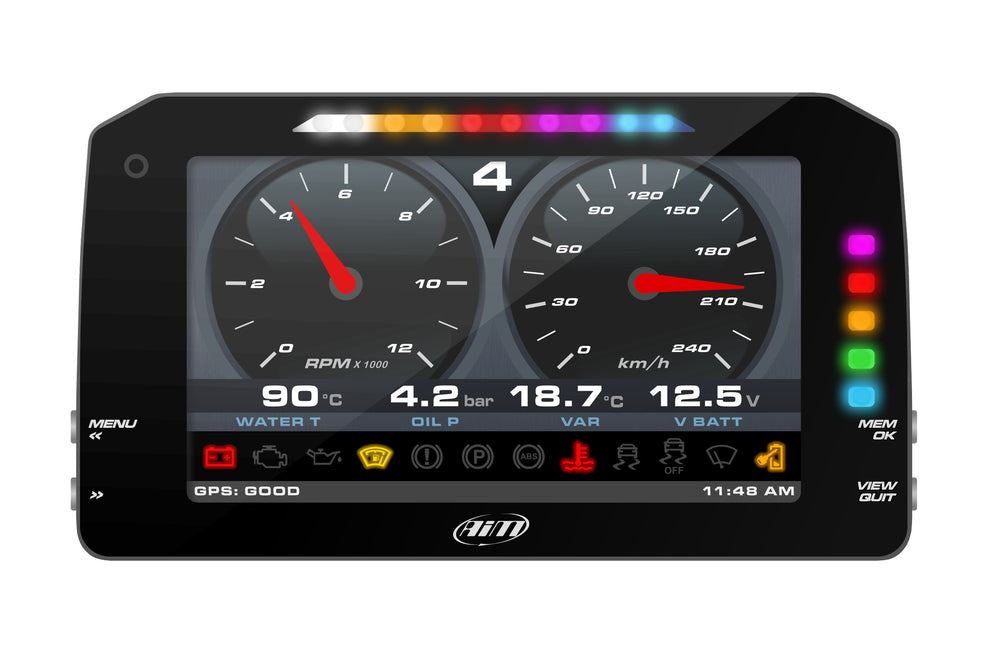

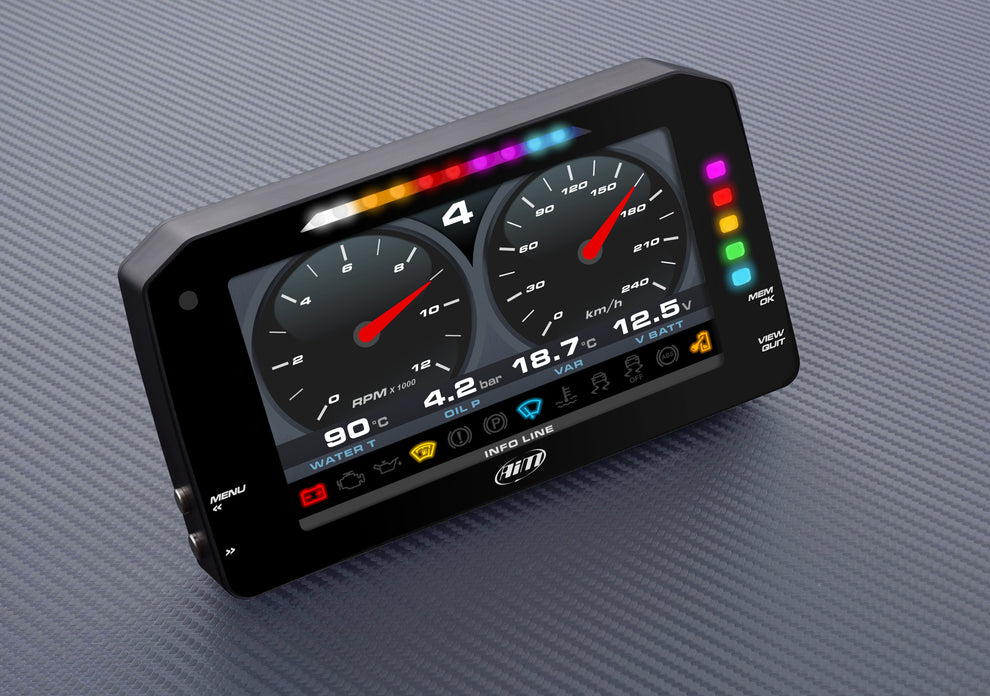

MXP offers 50% more display area than the 5'' MXS display, in a similar dimension. The dash logger has an integrated shift array, configurable multicolor alarms, drag and drop multi page configuration, Wi-Fi and USB connectivity, GPS Module, inertial platform, analog and digital inputs, digital outputs, Motorsport connectors, 4 GB of internal memory, 1,000Hz per channel sampling and support for over 1,000 ECU connections.

A wide range of data sources

MXP samples data coming from your ECU, the GPS Module, the 9 axis inertial platform (accelerometer, gyro and magnetometer), 8 fully configurable analog inputs, 6 digital inputs, predefined math channels and second CAN. Performance and data acquired can also be incremented adding up to eight expansion modules.

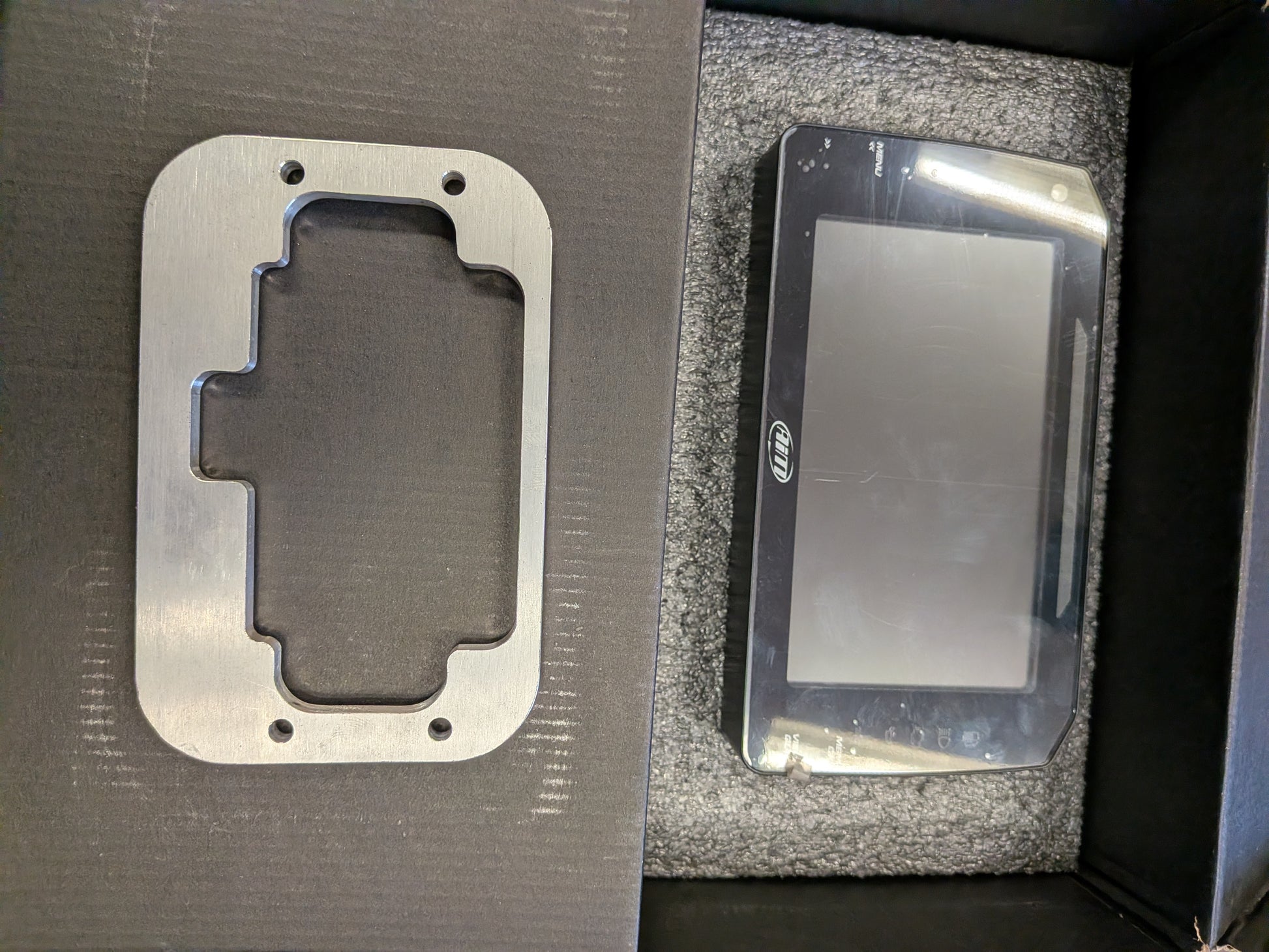

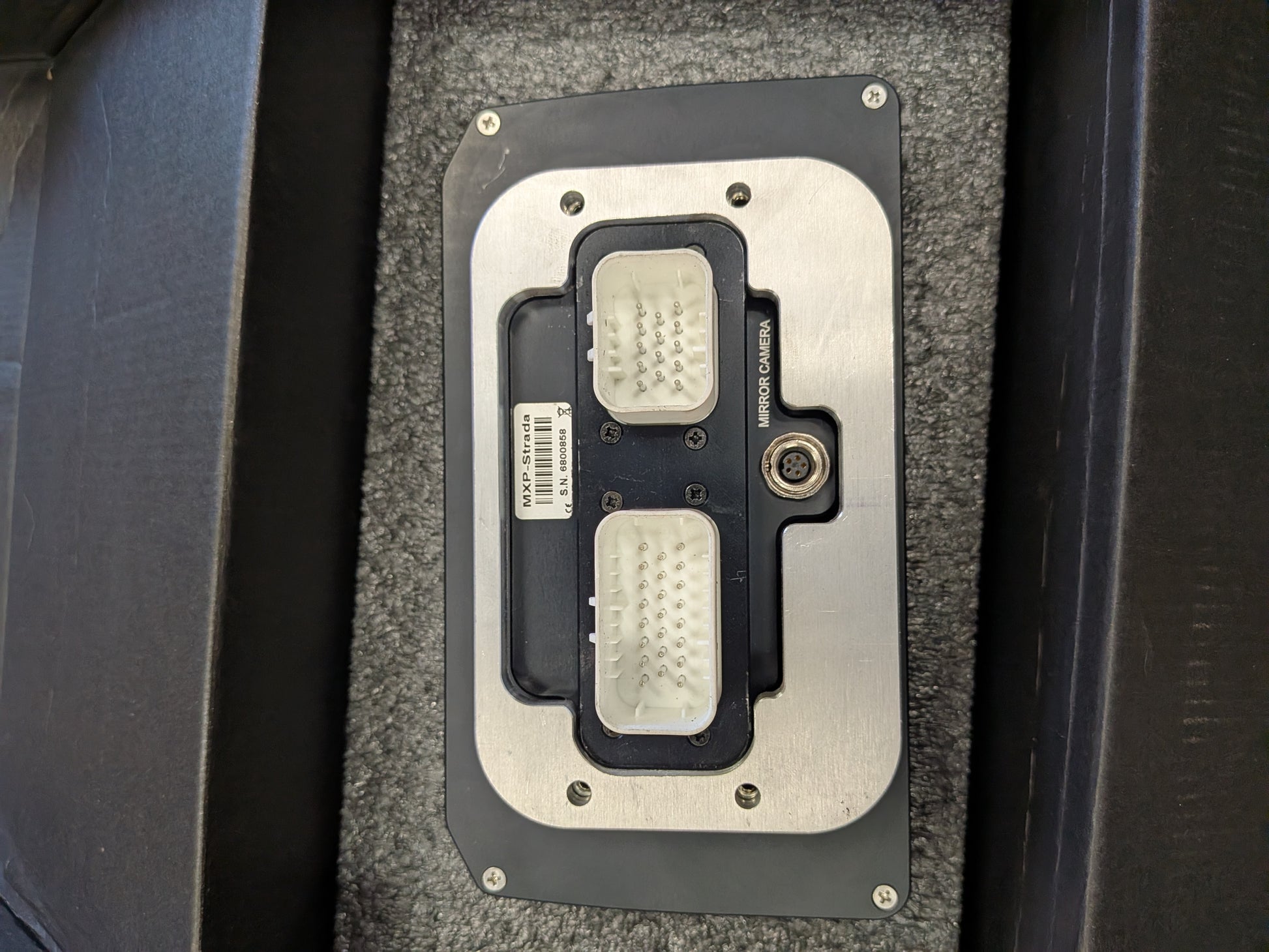

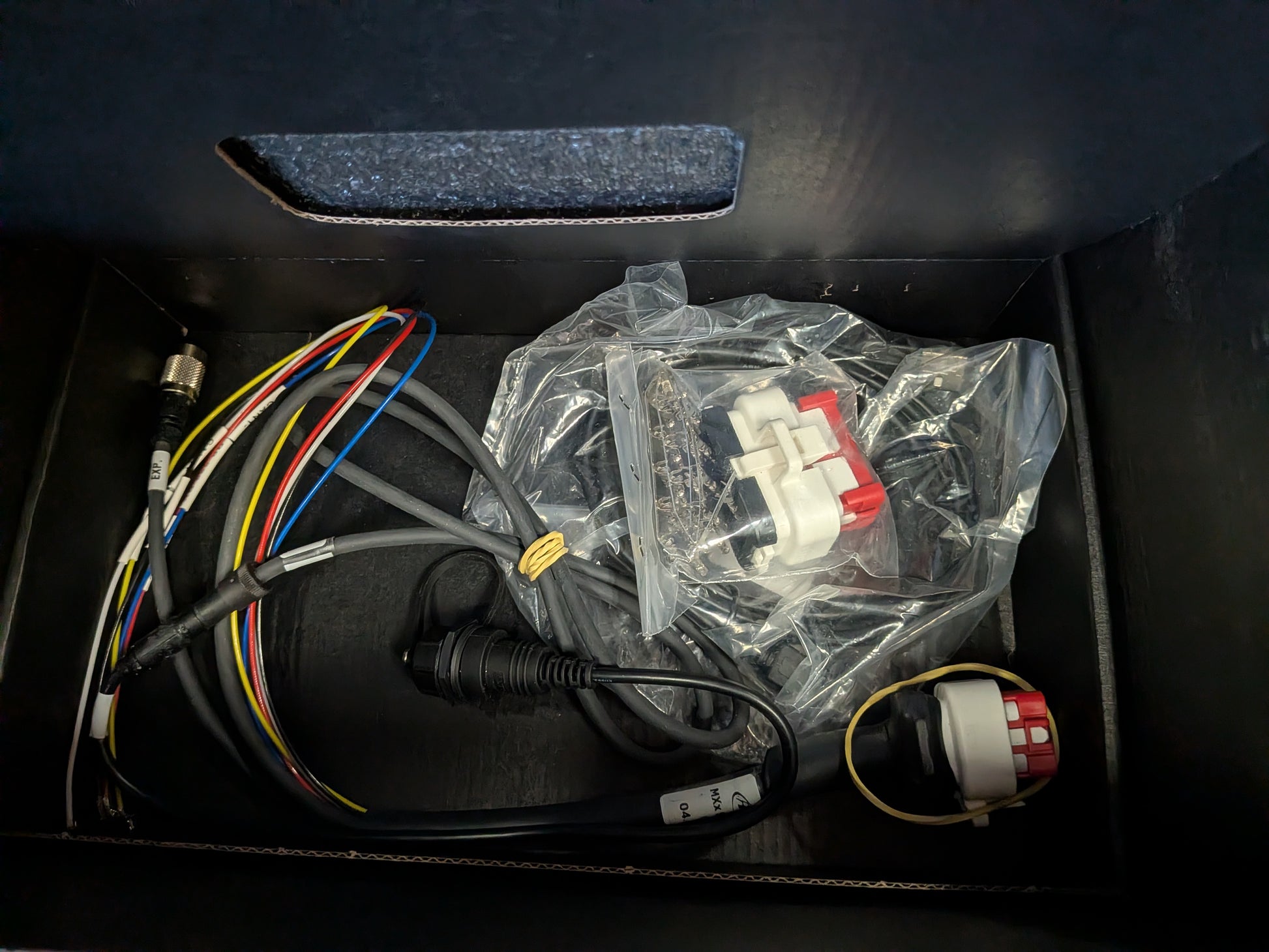

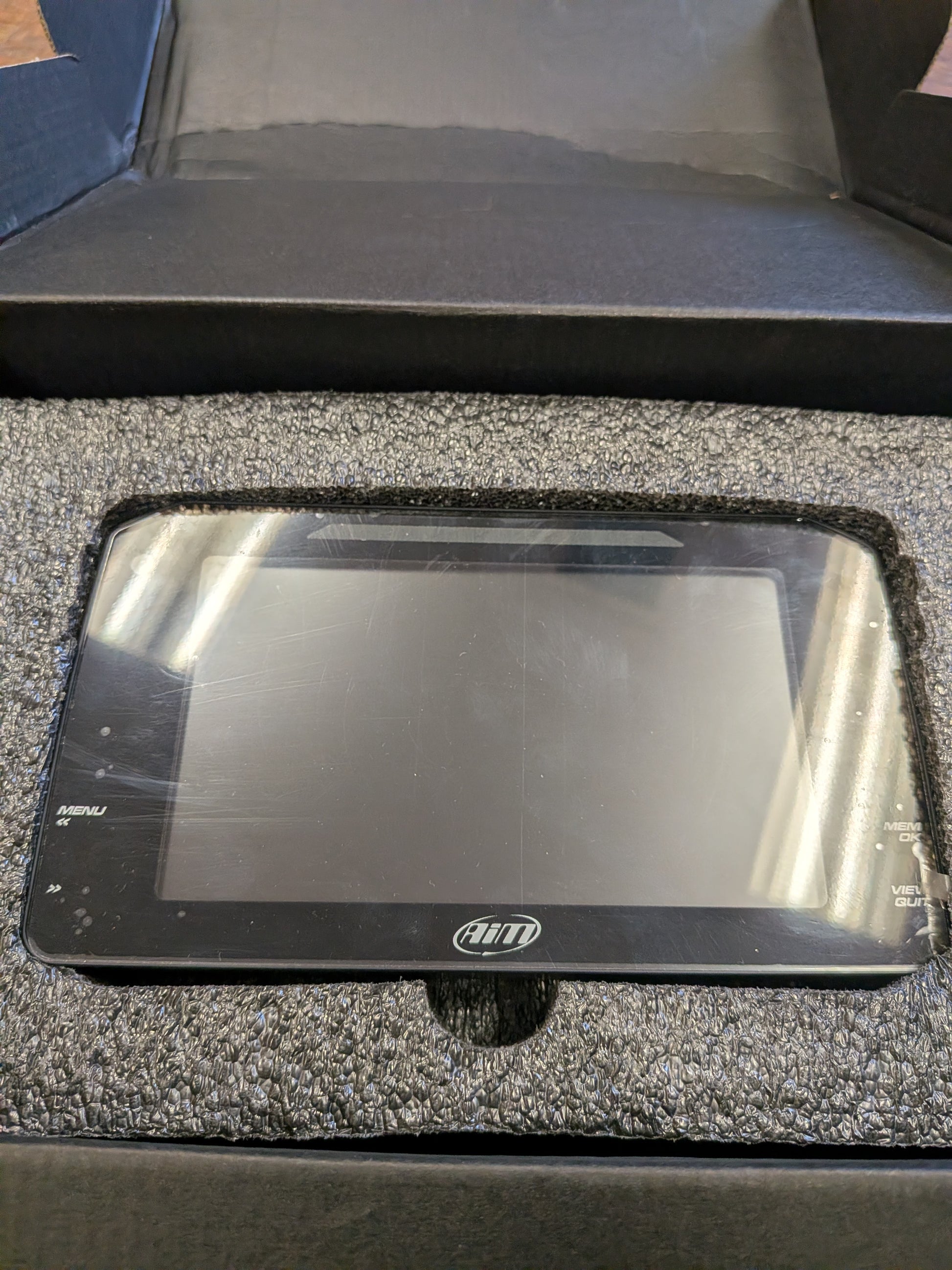

THIS IS AN OPEN BOX ITEM THAT WAS OPENED FOR DISPLAY PURPOSES ONLY, BRAND NEW NEVER BEEN USED, EVERYTHING THAT COMES INCLUDED WITH IT IS INSIDE THE BOX.
